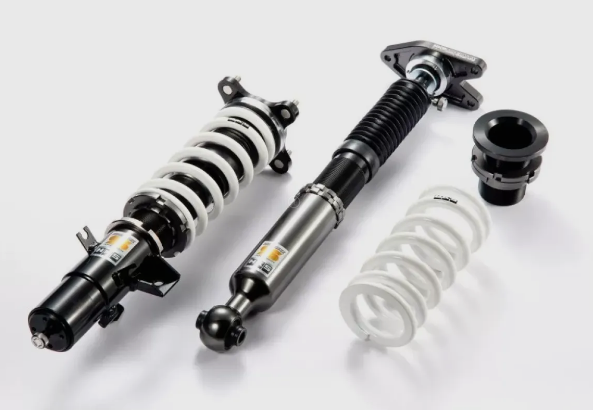

HKS HIPERMAX S DB82 Full Kit Toyota GR Supra 2020-2024

HKS HIPERMAX S Suspension Kit for Toyota GR Supra (2020-2024)

Experience a ride like never before with the HKS HIPERMAX S Suspension Kit, specifically designed for the Toyota GR Supra. This innovative suspension system combines advanced technology with superior comfort and handling, making every drive a joy.

Key Features:

• Dual Preload Valve System: This upgraded system minimizes unnecessary damping force at higher piston speeds, enhancing ride comfort while maintaining excellent driving performance.
• Wide Range Damping Force Adjustment: The redesigned Needle Jet allows for extensive damping force adjustments, perfect for a variety of driving conditions.
• Advanced Bump Stop Rubber: The new shape reduces body roll while providing exceptional ride comfort, surpassing standard hydro bump stop rubbers.
• Low Friction Technology: Utilizing cutting-edge tribology technology, this suspension boasts improved durability and reduced friction, leading to superior ride quality and handling.
• 3-Year Warranty: Enjoy peace of mind with an extended warranty, reflecting the quality and durability improvements over previous models.
• Single Tube Design
• 30 Levels of Adjustable Damping
• Shock-Body Length Adjustable
• Inverted Type (Front)
• Special Oil and PNE Coating
• Aluminum Bracket (Rear)
• Pillow Ball Upper Mount (Front)
• Customizable Specs and Overhaul Options

Specifications:

For GR Supra:

• Spring Rate [N/mm(kgf/mm)]: F=69(7.0) | R=118(12.0)
• Spring Length (mm): F=200 (Straight) | R=250 (Straight)
• Height at Factory (Upper-Lower): F=-33(-11 to -56) | R=-30(-7 to -63)
• Upper Mount: F=Spherical Bearing | R=Rubber
• Changeable Spring Rate [N/mm(kgf/mm)]: F=±10 (1) | R=±20 (2)

For GR Supra 2.0:

• Spring Rate [N/mm(kgf/mm)]: F=69(7.0) | R=118(12.0)
• Spring Length (mm): F=200 (Straight) | R=250 (Straight)
• Height at Factory (Upper-Lower): F=-22(0 to -45) | R=-22(0 to -55)
• Upper Mount: F=Spherical Bearing | R=Rubber
• Changeable Spring Rate [N/mm(kgf/mm)]: F=±10 (1) | R=±20 (2)

Fitment:

• Toyota GR Supra (2020-2024)
